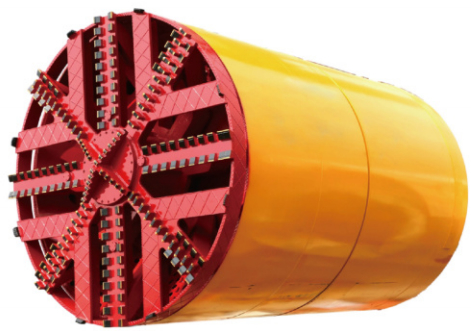

Underground Jacking ET1500mm Micro Tunnel Boring Machine

Microtunnel Boring Machine, Tuneladora Tbm, Pipe Jacking Machine For Sale

Tunnel Boring Machines (TBMs), often referred to as "mechanical moles," represent a significant advancement in tunnel construction technology. These machines offer a highly efficient and precise alternative to traditional manual excavation methods. Equipped with advanced systems, TBMs not only excavate tunnels but also manage the removal of debris and can even assemble precast segments simultaneously, depending on project requirements.

Key Features and Components

At the forefront of each TBM is a sophisticated rotating cutterhead, also known as a milling head, which is essential for the drilling process. This cutterhead is supported by a main bearing that facilitates rotation and provides the necessary longitudinal thrust. The cutterhead is fitted with various cutting tools—such as rippers, scrapers, and disc cutters—engineered to handle the specific geomechanical conditions of the terrain being excavated.

The effectiveness of TBMs, particularly in rocky environments, is heavily influenced by the materials used for these cutting tools. Steel is commonly chosen for the construction of disc cutters due to its exceptional strength, hardness, and ease of machining.

Additionally, the design of the cutting tools is critical. Their geometry—including the angle of inclination and the configuration of the tips—must be meticulously optimized to accommodate different soil types, whether they are rocky, compact, fractured, or sandy. This adaptability is what makes TBMs a versatile solution in modern tunneling projects.

Product Parameters:

Tunnel Boring Machines: Future Perspectives and Challenges

While today's Tunnel Boring Machines (TBMs) boast numerous advantages, there remains significant potential for enhancements. One notable challenge is the high start-up and maintenance costs, which necessitate a skilled workforce for effective operation and management.

Current research and advancements in the field are promising. Among these innovations are high-capacity and "Green TBMs," designed to significantly accelerate tunnel construction timelines. These machines aim to facilitate the completion of complex projects within shorter timeframes.

In conclusion, the forthcoming advancements in TBM technology are poised not only to revolutionize underground construction practices but also to play a crucial role in shaping the future of urban mobility, resource efficiency, and environmental sustainability.
